A1H25ST high current conductive slip ring is a special slip ring for electroplating/electrolysis equipment and other equipment with severe corrosion environment. It can pass a maximum current of 250A and adopts 3-layer sealing technology to ensure the safety of product use.
A1H25ST high current conductive slip ring Product features
1. 316L stainless steel shell and 3-layer sealing technology can resist strong corrosive environment
2. Stable operation at high speed, with a maximum speed of 1000RPM per minute
3. Low resistance can effectively reduce current loss during transmission.
4. Thread lock makes installation easier.
A1H25ST high current conductive slip ring Product parameters
| Parameter name | Parameter Value |
| Insulation resistance | >35 mΩ |
| Contact resistance | ＜1mΩ |
| Rated voltage | 0～400VDC/VAC |
| Maximum frequency | 200MHz |
| Working current | 10-1500rpm(See the specific model, can be customized) |
| Operating temperature | -30℃～+60℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Stainless steel/aluminum alloy |
| Rotational torque | 35-2000G·CM(See specific model) |
A1H25ST high current conductive slip ring Product size drawing

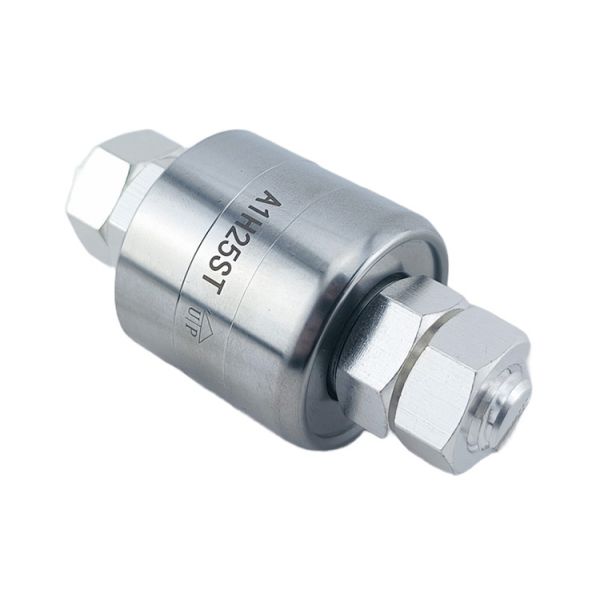

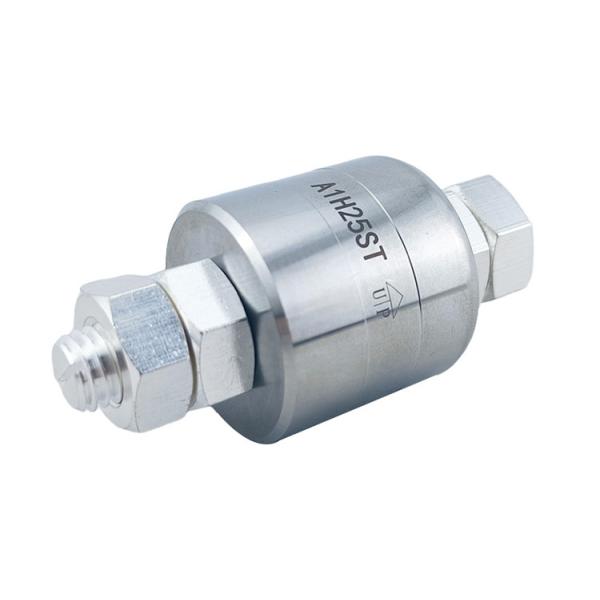

A1H25ST high current conductive slip ring Product Pictures
A1H25ST high current conductive slip ring Application scenarios
Applicable to electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
