GK50119-6P Series through-hole electrical connector, adopts 50mm large aperture, supports 6 independent circuit channels, aluminum alloy shell, the product is sturdy and durable, suitable for various automation equipment.
GK50119-6P Series through-hole electrical connector Product Features:
1. The inner diameter of the product is 50mm and the outer diameter is 119mm.
2. The product adopts a rotation stop design, which makes installation more convenient and quick.
3. High-quality metal contact materials, the product life can reach 20 million revolutions.
5. The dynamic resistance change value is < 10mΩ, which ensures the stability of current transmission during rotation and is suitable for complex outdoor environments.
GK50119-6P Series through-hole electrical connector Product Parameters
| Parameter name | Parameter Value |
| Power | Signal |
| Dielectric strength | 800VCA@50Hz,60s | 300VCA@50Hz,60s |
| Insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～440VDC/VAC |
| Wire Specifications | AWG Teflon wire (actually change the wire specifications according to the load conditions) |
| Wire length | Default 300mm (can be adjusted as required) |
| Operating temperature | 0～85%RH |
| Operating humidity | -30℃～+80℃ |
| Protection level | IP51 |
| Shell material | Metal/engineering plastics |
| Rotational torque | 0.1N.m,+0.03N.m/6-way |

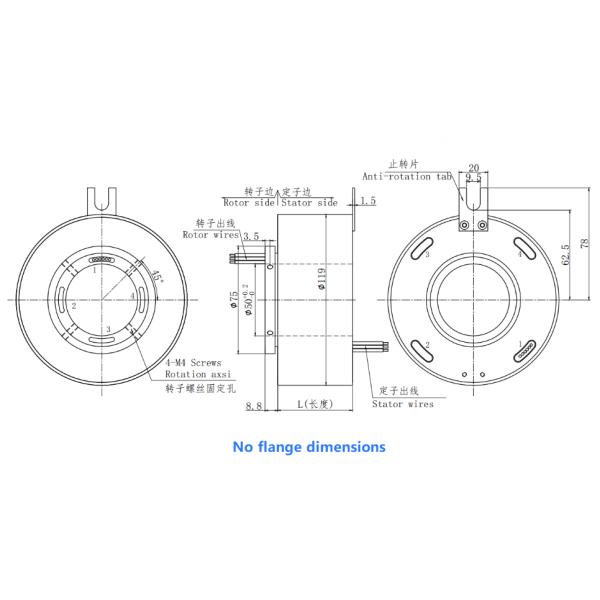

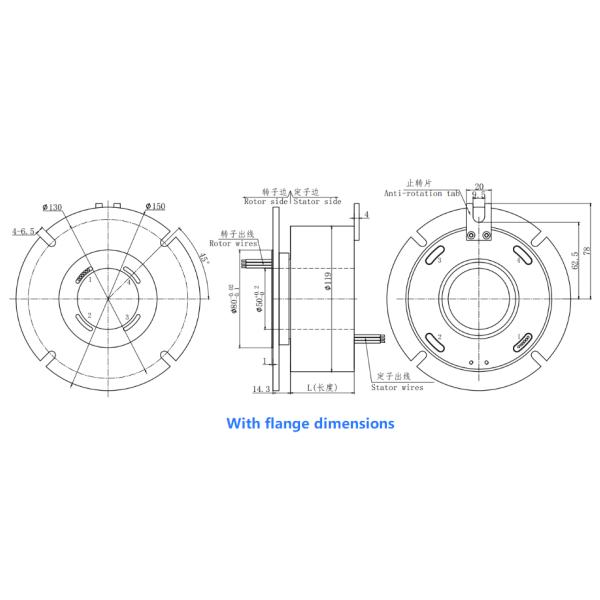

GK50119-6P Series through-hole electrical connector Dimensions
GK50119-6P Series through-hole electrical connector application
Wind power generation: connecting the rotating nacelle (generator, control system) with the fixed tower (grid, control system)
Industrial automation/robotics: rotating worktable/indexing plate, robot joints
Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
Testing equipment: such as turntable test, centrifugal test, etc.
Security monitoring: high-speed dome camera Ship/maritime: such as rotating radar mast, pod thruster, crane, etc.
