GK2586-12P series through-hole collector ring. 12 electrical channels, can transmit current and signals; rounded edges to prevent scratches. Suitable for automated production lines that require multi-channel control, such as industrial robots and packaging machinery.
GK2586-12P series through-hole collector ring Product Features:
1. 25.4 mm inner diameter, 86 mm outer diameter, adjustable line length, suitable for medium-sized general equipment.
2. 5A, 10A, 20A optional, insulation resistance ≥1000MΩ, dynamic resistance <10mΩ.
3. IP51 protection, 0.1N.m torque, customizable USB signal, support speed 0~250rpm.
4. The contact material is made of precious metal, -30℃~+80℃ temperature range.
5. Support terminal wiring customization, 12 channels are divided into groups, and the recognition is high.
GK2586-12P series through-hole collector ring Product Parameters
| Parameter name | Parameter Value |
| Power | Signal |
| Dielectric strength | 800VCA@50Hz,60s | 300VCA@50Hz,60s |
| Insulation resistance | ≥1000MΩ/500VDC | ≥1000MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～440VDC/VAC |
| Wire Specifications | AWG Teflon wire (actually change the wire specifications according to the load conditions) |
| Wire length | Default 300mm (can be adjusted as required) |
| Operating temperature | 0～85%RH |
| Operating humidity | -30℃～+80℃ |
| Protection level | IP51 |
| Shell material | Metal/engineering plastics |
| Rotational torque | 0.1N.m,+0.03N.m/6-way |

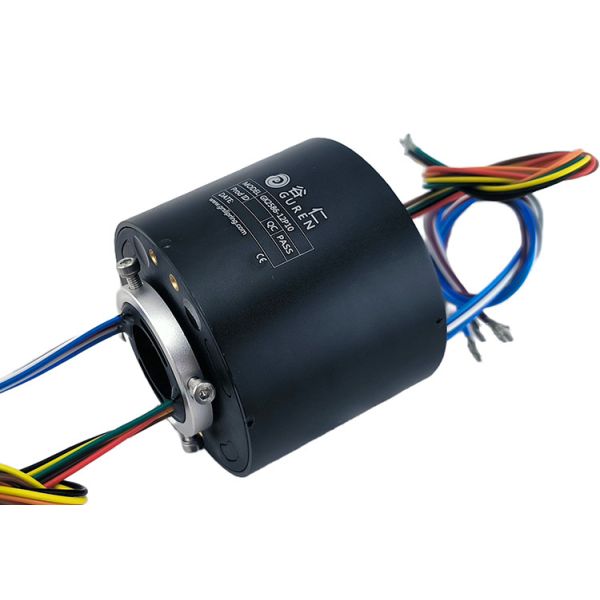

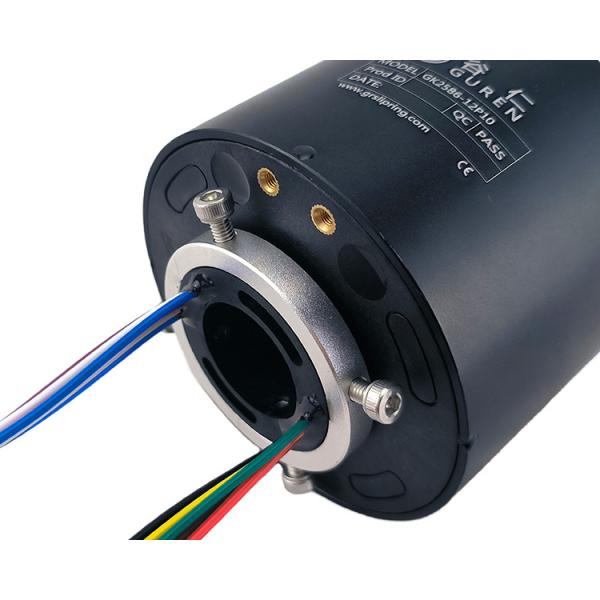

GK2586-12P series through-hole collector ring Product images
GK2586-12P series through-hole collector ring application
Wind power generation: connecting the rotating nacelle (generator, control system) with the fixed tower (grid, control system)
Industrial automation/robotics: rotating worktable/indexing plate, robot joints
Medical imaging equipment: CT scanner, X-ray machine (rotating C-arm)
Packaging machinery/filling equipment: power supply and signal control of filling head and labeling head
Testing equipment: such as turntable test, centrifugal test, etc.
Security monitoring: high-speed dome camera Ship/maritime: such as rotating radar mast, pod thruster, crane, etc.
